Global Standard High Head Pumps

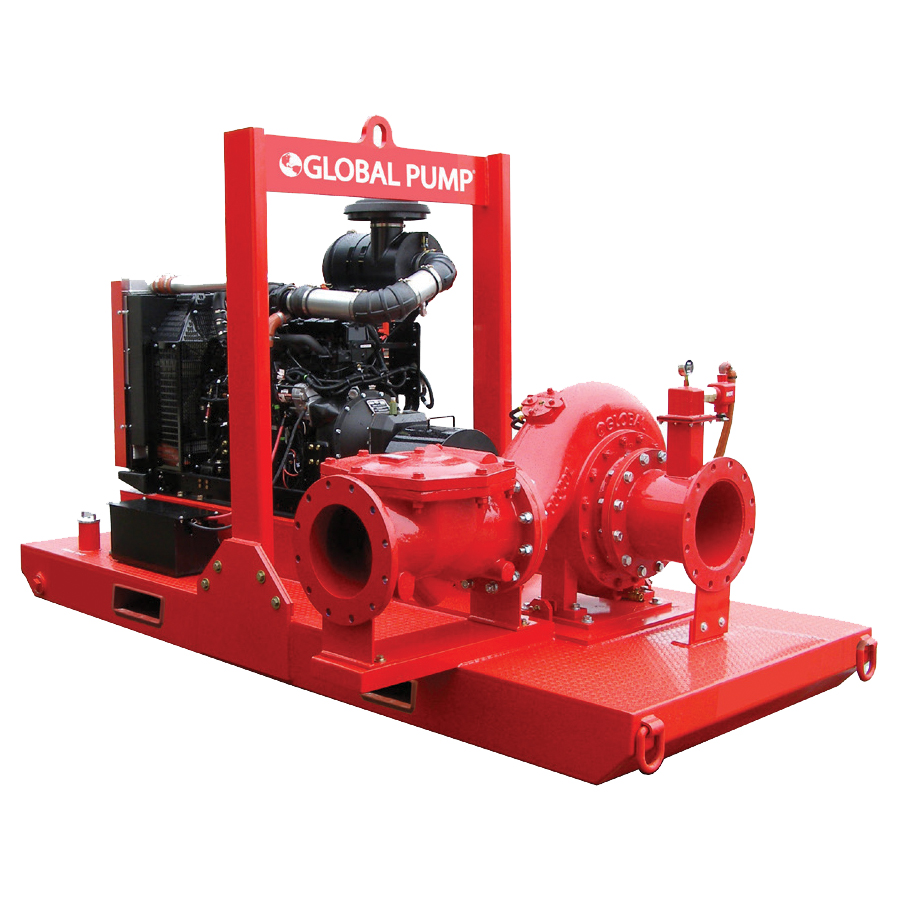

Global Pump® Standard High Head pumps are specifically designed to effectively handle a wide-range of liquids in applications such as liquid transfer, wash down, fire protection, fracking and jetting where high heads and pressure are required.
Global Pump Standard High Head pumps provide a dependable, highly efficient solution. The model 10GSH is capable of achieving maximum flows of 4,750 gpm (1,080 m3/h) and maximum total head of 340’ (104 m), with solids handling up to 1.5” (38.1 mm) in diameter. The standard 10GSH is powered by a water-cooled, 6-cylinder diesel engine. Alternative drives are available, including other diesel engines or electric motor options. We have 4GSH to 12GHS.
Stats & Charts
Modern industrial engineers typically use predetermined motion time system, computer simulation, along with extensive mathematical tools for modeling, such as mathematical optimization and queueing theory, and computational methods for system analysis, evaluation, and optimization.
Submersible Pump Types
Electronic materials are the type of materials which are typically used as core elements in a variety of device applications. These elements can be, for example, memories, displays, LEDs and could be easily seen in daily electronic gadgets such as mobile phones, computers, laptops, tablets, GPS devices, LED bulbs, TVs and monitors.
- Vestibulum consectetur lorem interdum, sollicitudin sapien ac, laoreet magna.
- Proin vel arcu pulvinar, feugiat urna in, laoreet tortor.
- Curabitur pulvinar nulla eget libero facilisis fringilla.
Global Pump’s rugged, heavy duty pumps are engineered specifically for portable application.
Non-return valve uses only a single moving part to allow with minimal restriction.
Standard engine control panel provides preset emergency shutdown protection and allows the addition of automatic level control.
Fully guarded coupling.
Pump casings are hydrostatically tested to 50 psig (345 kPa) above the peak casing design pressure.
Skid-mounted formats with tie downs, lifting bail, and fork
pockets
Flanges
Max Pump Speed: 2,200 rpm
Max Flow: 4,750 gpm (1,080 m3/h)
Max Head: 340’ (104 m)
Max Static Priming Lift: 28’ (8.5 m)
Temperature Limit: 160° F (70° C)
Solids Handling Capability: 1.5” (38.1 mm)
Max Casing Pressure: 200 psig (1,379 kPa)
Fuel Cell: 150 gallons (565 liters)
Dry Weight: -
Casing: Cast Iron (CD4MCu is an option)
Impeller: Cast Iron (CD4MCu is an option)
Bearing Housing: Cast Iron
Bearing Lubrication: Grease
Shaft: Stainless Steel
Seal: Silicon Carbide on Silicon Carbide
Chassis/Fuel Cell: Steel
Non-Return Valve: Nitrile Fitted Cast Iron
